OmnidirectionalCardioidHypercardioidGroove Tubes GT-33

Detachable-Capsule Pencil Condenser Microphone

The GT-33 is a pencil condenser with interchangeable capsules and a transformer-coupled output. It was designed by Aspen Pittman, and introduced in 2001 at an MSRP of $599.

The mic has high sensitivity (26mV/Pa) and moderate self-noise (20dBA). Onboard switches enable a pad (-15dB, raising the max SPL to 150-155 depending on which version of the literature can be believed) and high-pass filter (-12dB/octave cutoff below 75Hz).

The mic shipped with a removable Cardioid capsule; Groove Tubes sold both Omni and Hypercardioid capsules separately. These capsules were also compatible with the GT-44 tube pencil mic.

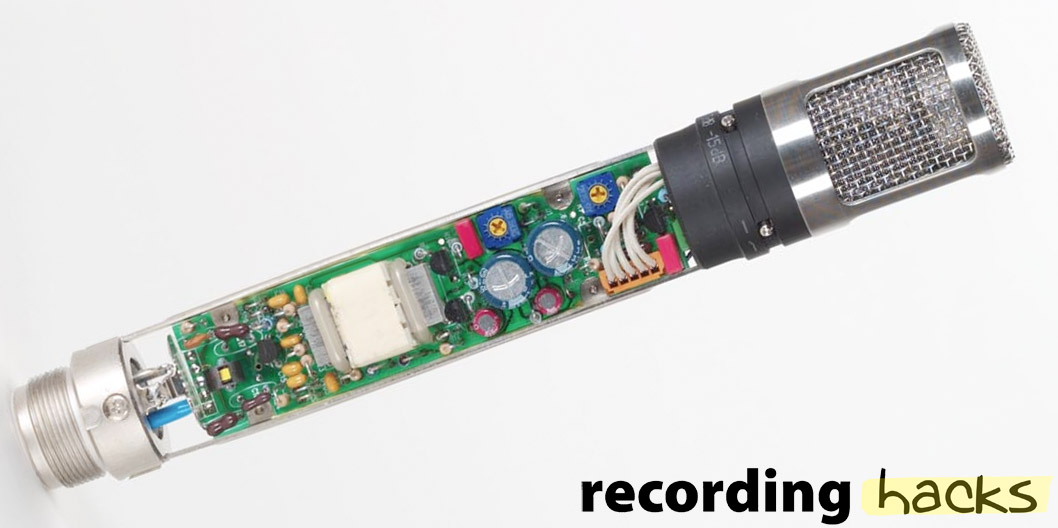

GT-33 PCBThe FET-based impedance-conversion circuitry is made with through-hole components. The output transformer is clearly visible on the board.

The Groove Tubes line was distributed by Midiman (later renamed M-Audio) beginning in 2001; in 2003, the GT33 FET had an MSRP of $399 for a single or $798 for “Certified Matched Pairs.”

Recording

I recently tried the M-Audio GT33 ($280), made by Groove Tubes, which is a medium-diaphragm solid-state mic. In my review I found the sound very close to that of a Shure SM81, but the GT33 has an omni capsule available as an accessory, [whereas] the SM81 doesn’t.

The Groove Tubes GT-33 is also known as: GT33 FET, GT33.

Specifications

Compatible Capsules
Groove Tubes C1 CardioidCardioid Groove Tubes C1 Cardioid
19mm Cardioid capsule
Sensitivity: 28 mV/Pa
Freq. Resp.: 20 - 20,000 Hz
MSRP: $99 | discontinued
Groove Tubes C2 HyperHypercardioid Groove Tubes C2 Hyper
19mm Hypercardioid capsule
Sensitivity: 28 mV/Pa
Freq. Resp.: 20 - 20,000 Hz
MSRP: $99 | discontinued
Groove Tubes C3 OmniOmnidirectional Groove Tubes C3 Omni
19mm Omnidirectional capsule
Sensitivity: 28 mV/Pa
Freq. Resp.: 20 - 20,000 Hz
MSRP: $99 | discontinued
Pads & Filters Impedance SPL/Noise
  • Pad: -15dB (Via Switch)
  • Filter: HPF: -12dB/octave @ 75Hz (Via Switch)
200 Ohms (Low) Max SPL: 155 dB
Self-noise: 20.0 dB(A)
Weight Length Max Diameter Interface(s)
400g (14.11oz) 190mm (7.48'') 19mm (0.75'')
  • 3-pin XLR male (1)
Power Specifications
  • Requires phantom power
