CardioidLauten Audio LA-220

Cardioid Condenser Microphone

The Lauten LA-220 is a large-diaphragm, fixed cardioid, side-address microphone. It is manufactured in China.

Along with its siblings the LA-120, and the LA-320, it is part of the Lauten “Series Black” line launched in 2016. The line is aimed at budding engineers working in less-than-ideal acoustic spaces.

The LA-220 has independent 12 kHz high cut and 120Hz low cut filters, engaged with switches on the front of the microphone.

The microphone comes in a padded cardboard shipping box with a spider shock mount.

Permalink: Lauten Audio LA-220

The mic was released in 2017.


Pickup Patterns Pads & Filters

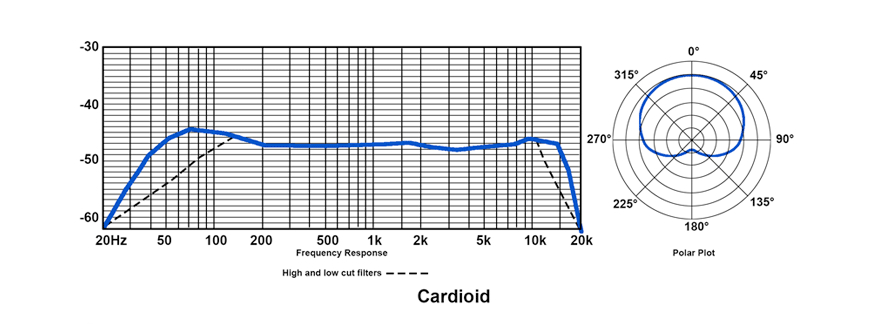

Cardioid (16 mV/Pa; 20 - 20,000 Hz)
  • Filter: low cut at 120Hz (Via Switch)
  • Filter: high cut at 12kHz (Via Switch)
Capsule Dimensions Impedance SPL/Noise
Diaphragm diameter: 25mm
Capsule diameter: 32mm
200 Ohms (Low) Max SPL: 130 dB
Self-noise: 15.0 dB(A)
Weight Length Max Diameter Interface(s)
n/a n/a n/a
  • 3-pin XLR male (1)
Power Specifications
  • Requires phantom power
