CardioidKarma Audio K10

Detachable-Capsule Pencil Condenser Microphone


The K-10 is a cardioid pencil condenser microphone with detachable capsules and a transformer-coupled circuit. No alternative capsules have been made available, but likely will be in the future, as it is a simple screw-off design that lends itself easily to expansion.

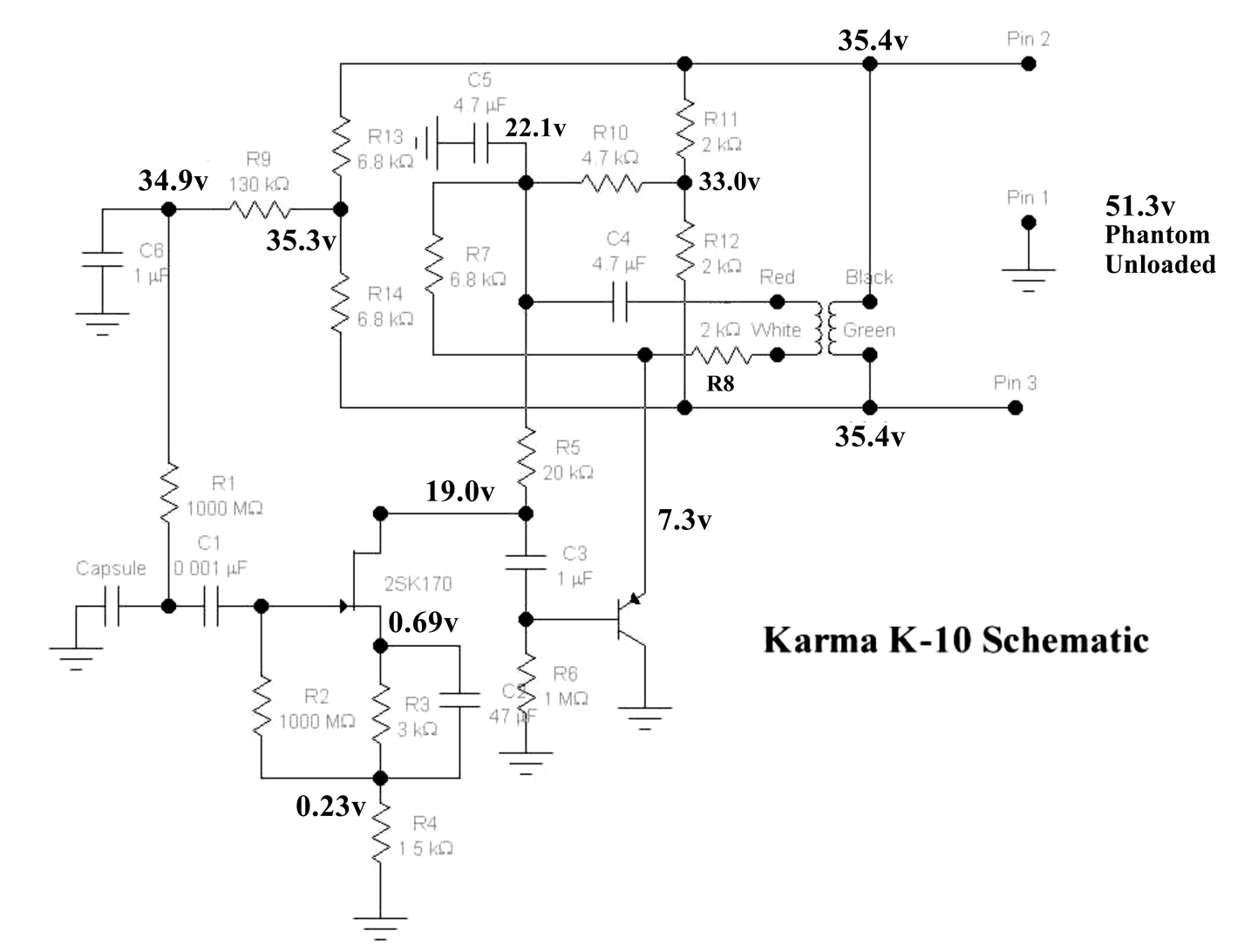

K10 schematicThe amplifier circuit is built with surface-mount components. It uses the 2SK170 JFET that is common to most Chinese-made microphones.

The mics are sold in matched pairs, and ship in a padded hard-shell case with plastic mic clips.

Karma K-10All Karma mics carry a 2-year warranty.

K10 schematic drawn by Lee Hutchinson

The Karma Audio K10 is also known as: K-10.


Compatible Capsules
Karma Audio K10Cardioid Karma Audio K10
Cardioid capsule
Sensitivity: 14 mV/Pa
Freq. Resp.: 30 - 20,000 Hz
MSRP: n/a | Still In Production
Pads & Filters Impedance SPL/Noise
n/a 200 Ohms (Low) Max SPL: 145 dB
Weight Length Max Diameter Interface(s)
140g (4.94oz) 163mm (6.42'') 23mm (0.91'')
  • 3-pin XLR male (1)
Power Specifications
  • Requires phantom power
  • Phantom voltage: 48v
