L36B Documentation
Aseyer Electric Technology Nanjing Co L36B
Cardioid Condenser Microphone

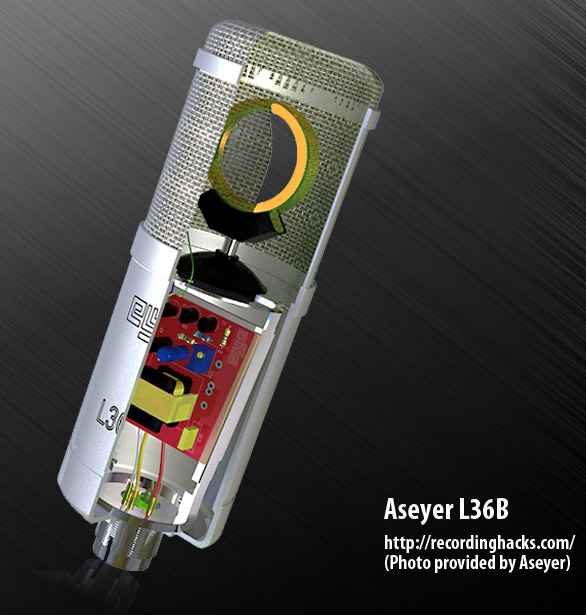

The L36B is a premium FET condenser microphone. It has a fixed Cardioid pickup pattern and a transformer-coupled output circuit.
The capsule is Aseyer’s proprietary single-diaphragm, edge-terminated 36mm design, fitted with a 2-micron nickel membrane. This capsule is described as being immune to the effects of humidity and moisture that can cause shorting in alternative capsules.
The amplifier circuit is a Class A design with an output transformer and low-impedance output (100Ω). No pads or filters are provided.
Given the mic’s high sensitivity (30mV/Pa) and very low self-noise (11 dBA), the mic is well suited to recording quiet acoustic instruments, but might need an external pad for loud sources.
Permalink: Aseyer Electric Technology Nanjing Co L36B
The mic was released in 2010.
Specifications
| Pickup Patterns | Pads & Filters |
|---|---|
|
Cardioid
(30 mV/Pa; 20 - 20,000 Hz) |
|
| Capsule Dimensions | Impedance | SPL/Noise |
|---|---|---|
| Capsule diameter: 36mm Diaphragm gauge: 2 microns |
100 Ohms (Low) | Max SPL: 138 dB Self-noise: 11.0 dB(A) |
| Weight | Length | Max Diameter | Interface(s) |
|---|---|---|---|
| 600g (21.16oz) | 180mm (7.09'') | 57mm (2.24'') |
|
| Power Specifications |
|---|
|
