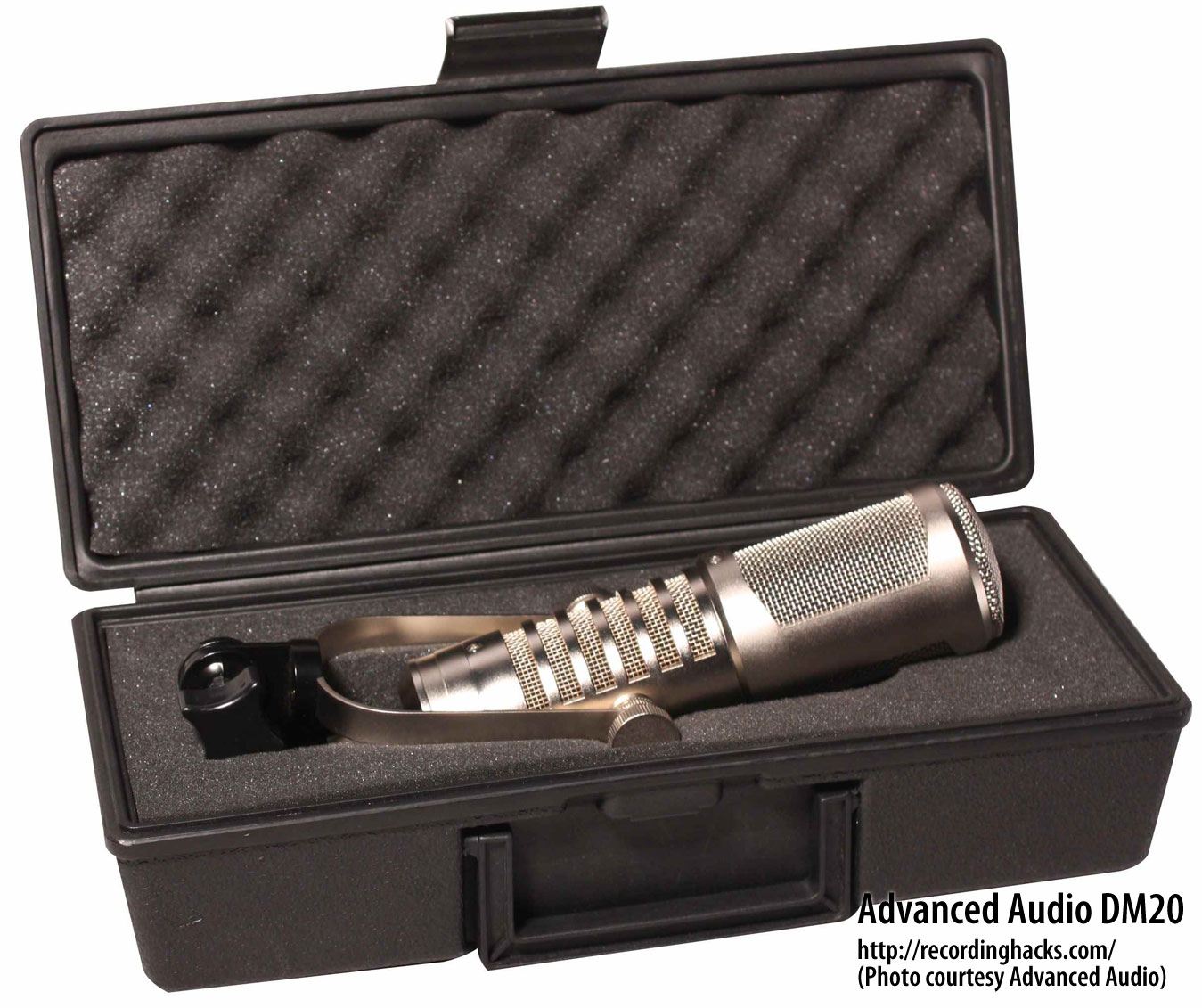

Advanced Audio Microphones DM20

Cardioid Dynamic Microphone

The DM20 is a dynamic microphone intended for broadcast and vocal recording applications. It is modeled to some degree after the Electro-Voice RE20, but has a significantly different response plot, with hugely scooped mids.

Unlike the original RE20, the DM20 has no output transformer.

Dave Thomas

The DM20 is similar the EV RE-20, but it has a redesigned, higher-impedance voice coil that does not require an output transformer.

The weakest link in dynamics is usually the small transformer they use, which can get saturated in high-SPL situations.

The mic’s frequency response graph shows significant peaks; there is a +6dB peak at 150Hz, and a +13dB peak at 6-7kHz.

Although at a glance this response profile appears similar to many tailored kick-drum mics, the peaks accentuate different frequency bands. Most kick-drum mics have a LF peak between 50–100Hz, and a HF peak around 2–4kHz. The DM20 peaks occur at higher frequencies in both cases.

The preliminary specifications below are subject to change.

Permalink: Advanced Audio Microphones DM20

The mic was released in 2010.

Specifications

Frequency Response - CardioidClick Graph to Compare!

Pickup Patterns	Pads & Filters
Cardioid (0.3 mV/Pa; 95 - 14,000 Hz)

Coil Diameter	Impedance	SPL/Noise
n/a	n/a	SPL n/a

Weight	Length	Max Diameter	Interface(s)
n/a	n/a	n/a	3-pin XLR male (1)

Power Specifications
