So it happened that I had a unique chance to do some preamp testing in a very controlled way…

At NightBird Recording Studios in Los Angeles, we had a 9-foot Yamaha Disklavier concert grand piano in the live room, and nice group of mic preamps available in the control room, which provided a great opportunity to audition all the mic pres. The beauty of using the Yamaha Disklavier as our instrument is that this acoustic piano can play back MIDI files. This might be the only way to actually record a nearly-identical acoustic performance using the same mics through different preamps.

Mics

The piano was miked at full-stick with a pair of DPA 4052s, the miniature descendent of the DPA (B&K) 4006 — a long-time standard for classical recording. The 4052 is an omnidirectional microphone with a set of changeable acoustic filter grids that fit over the capsule to provide different on-axis frequency response curves. The near-field grid I used provides a linear on-axis high frequency response in the near field, which allows a stereo pair of 4052s to be used inside the piano with very nice stereo imaging.

In this case, the microphones were positioned about 4 inches above the hammers, with the left mic around an octave below middle C and the right mic around a half-octave above middle C, so about 16 inches apart. The mics were directly above the hammers, and pointed slightly towards the tail of the piano. I find this arrangement a very good way to record this piano, especially for pop, rock or jazz. It provides a punchy and defined sound, without too much pedal or other mechanical noise. Moving the mics left to right changes the width of the stereo image to suit the recording. (Sometimes, I use an additional mic over the low strings to fill in the low end, but not for this test.)

Preamps

Now for the preamps. We had just received a pair of Neve 1073LBs, which I was anxious to hear against the studio’s vintage Neve 1081s. Also on hand were API 512c, Avalon M4, Great River MP-500NV pairs, as well as a Manley Slam. All the mic pres are discrete, solid-state, except for the Manley, which boasts Class A tube pres.

As a bonus, the Great Rivers were used in both their “loaded” and “un-loaded” settings. The loading button on the Great River changes the way the output transformer is loaded, with the “loaded” mode generally giving a flatter response while the “un-loaded” mode is a little thicker in the midrange and maybe a touch more open on top. The different loading modes are definitely worth auditioning for every recording.

Audio Samples

Each mic preamp pair was patched into the same two inputs on an Apogee AD-16x converter and recorded into Pro Tools 9 at 24bit, 44.1khz. No additional processing was applied to these tracks.

The performance was a pop/rock piano part from an actual song, and I chose to create excerpts from two sections. One section is a more delicate two-hand chordal part with sustained chords and arpeggios while the other section is a more heavy-handed chordal section with heavy left hand parts. Both sections loop well, so you can line up all the different preamps on different stereo tracks in your DAW and let it loop while you solo each track. Matching the volumes is somewhat difficult, since the frequency and dynamic response is so varied from preamp to preamp, but overall the levels are fairly close.

I find that preamp auditions using stereo sources are much more revealing than mono sources, so the piano test provides a good chance to compare overall tonality, imaging, dynamics, space and size characteristics, as well as harmonic distortion, which always seems to rear its head for piano recordings. Going through the listening process of each preamp more than once and at different times will give you the best perspective on how each preamp performs.

[Find the 24-bit WAV audio files here. Loop and enjoy! –Ed.]

Neve 1073

Neve 1073, Sample 1
Neve 1073, Sample 2

Neve 1081

Neve 1081, Sample 1
Neve 1081, Sample 2

API 512c

API 512C, Sample 1
API 512C, Sample 2

Avalon M4

Avalon M4, Sample 1
Avalon M4, Sample 2

Great River MP-500NV (Loaded)

Great River, Sample 1
Great River, Sample 2

Great River MP500-NV (Unloaded)

Great River (unloaded), Sample 1
Great River (unloaded), Sample 2

Manley Slam

SLAM!, Sample 1
SLAM!, Sample 2

Listening Notes

Keep in mind that there is no single best preamp, and any of these might be a good starting point for a given piano and a given production. Remember, this piano was a very large piano, close-miked and played very strongly.

For this actual record (which was a four piece acoustic band), we wound up using the Great River unloaded and added a third microphone (a large diaphragm condenser) over the bass end of the piano to fill in the bottom and center the piano a bit more.

Below are my overall reactions to each preamp with the kinds of production style that I envision for each:

Neve 1073 LB – Very clean and well balanced. Nice stereo spread. Articulate but not sterile. Natural presence. Good for punchy, clean piano in a pop or rock song. May be too articulate for jazz or smooth-jazz.

(1073LB info)

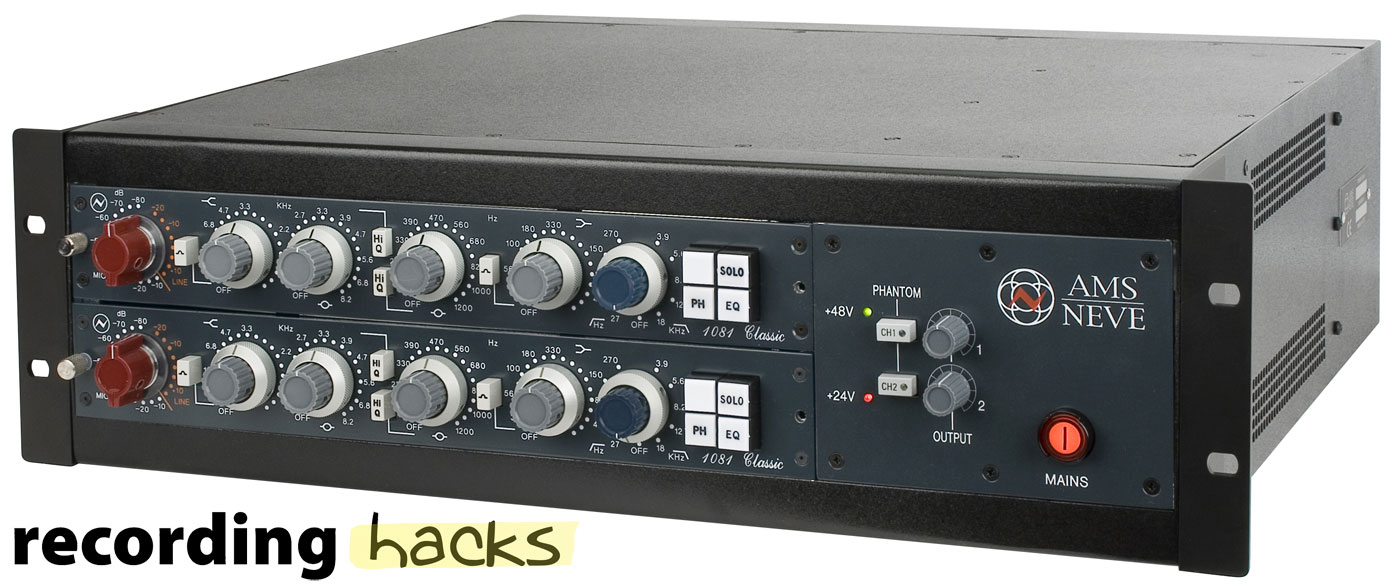

Neve 1081 – Natural and wide. Not as articulate as 1073LB, but in some ways more pleasing. Wide stereo image, with a slight phasey-ness in the low mids. Harmonics stay clean even in dense passages. Overall a little laid-back sounding. Good for rock, pop and smooth jazz.

(Vintage 1081 modules can be found on the used market, or see the current production 1081 Classic from AMS/Neve.)

API 512c – Wide stereo with no phase issues. Well balanced across the entire frequency spectrum. Handles dense pasages very well. Even dynamics. Would be good for rock, pop, smooth jazz and acoustic jazz.

(512c info)

Avalon M4 – Very similar to Neve 1081, with less hi-mid bite. Kind of a mellower, cozy sound. Takes up more sonic space with less definition. Could be just the ticket for a piano that is not featured but acts more like a pad.

(The M4 has been discontinued for years, but read more about the M5.)

Great River MP 500NV (Loaded) – Nice harmonic balance for pop music – a bit scooped out in the mid-range, allowing the piano to fit very well in a pop or rock production. The piano feels a bit more distant than some other preamps. Maybe a little hyped for smooth jazz or jazz.

Great River MP 500NV (Unloaded) – Very good representation of the acoustic sound of this piano. Maybe the most harmonically even. Nice stereo spread. In the same family as the Neve 1081 with a little more presence. This preamp setup would probably be the most useful of the bunch, given its overall character. Would work in all types of productions. Especially clear in the harmonically rich sections.

(MP500NV info)

Manley SLAM! – A little mellow on the lead parts, but very nice on the dense, chordal sections. Would take EQ very well, without getting harsh. Lots of dynamics and nice stereo spread. Nice spectral balance with large, clear low-mids and open highs. Perhaps the best choice for mellower productions, or where piano is the lead instrument. Smooth jazz, jazz, sparse pop or rock.

(Manley SLAM! info)

Closing Thoughts

Pandora’s box opens every time I do any kind of shootout, but I hope you enjoy the recordings of each preamp and can decide if there is one that would be your go-to preamp, or if you just might need a handful around for that special case.

Adam Kagan is a recording engineer, mixer and producer with numerous Grammy-nominated and -winning productions to his credit. He is also brains behind a new songwriting tool called Temptress, available soon as AU, VST, RTAS plug-in. Read more about Temptress, or visit Adam online at about.me/adamkagan.
